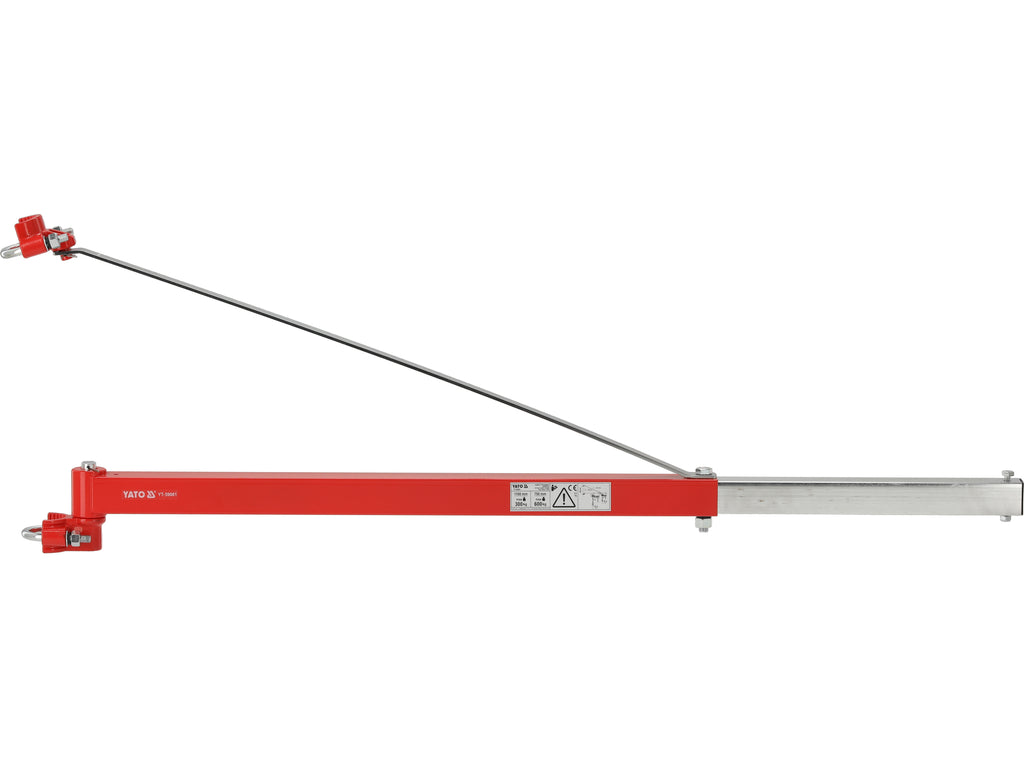

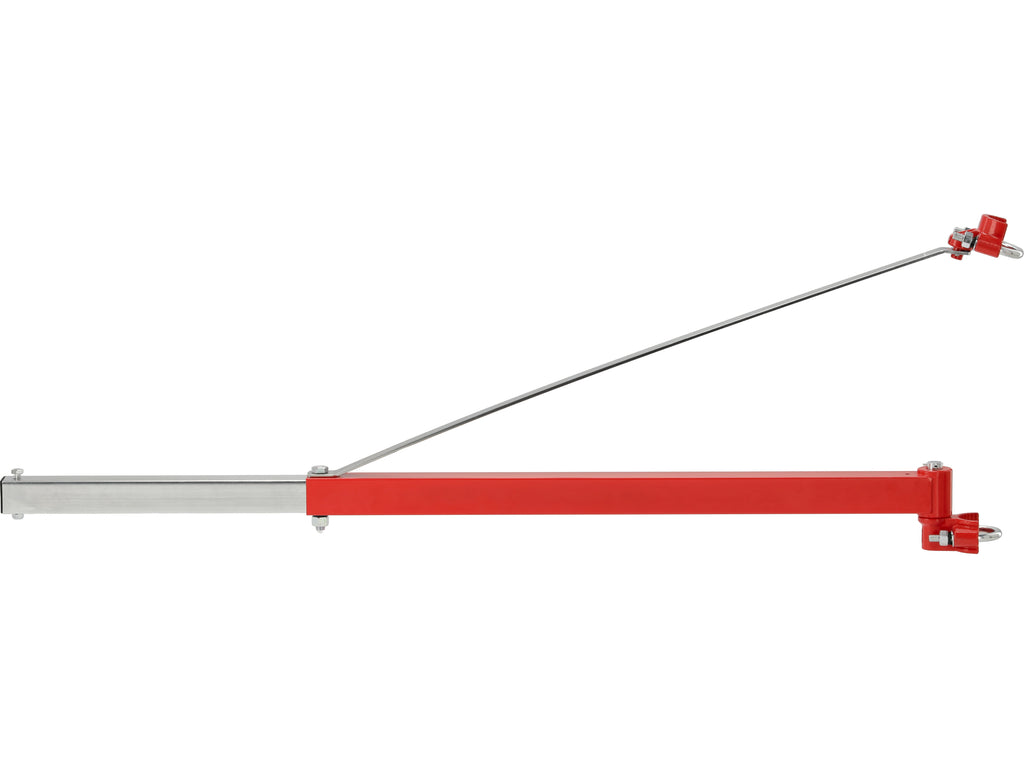

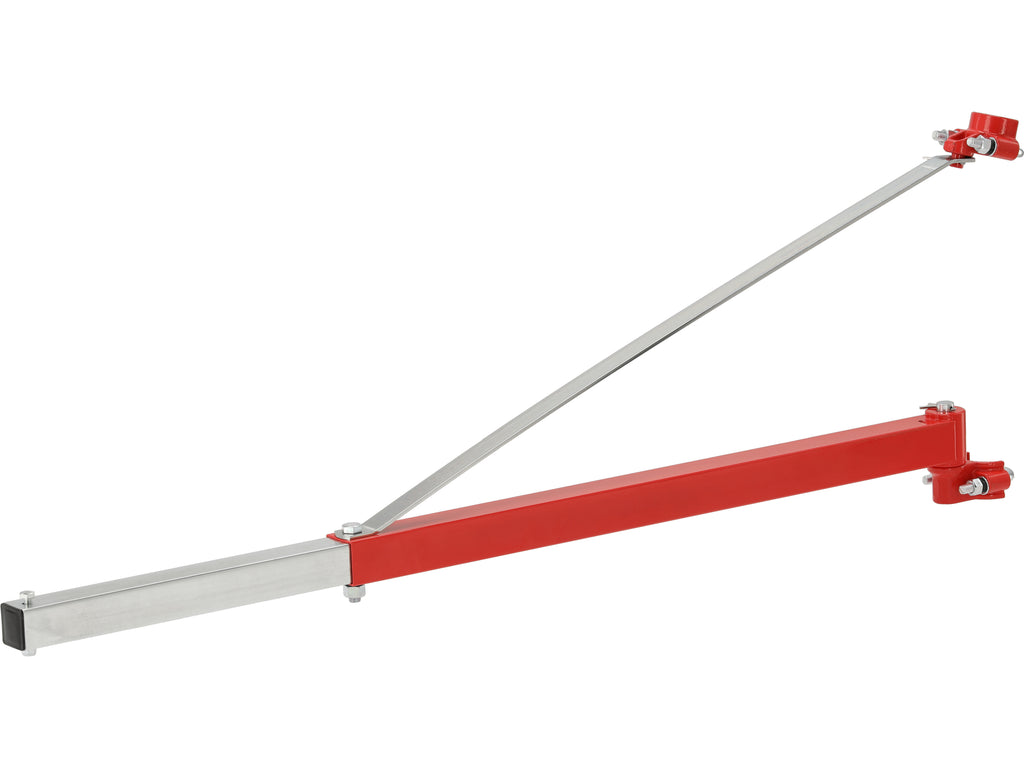

Durable hoist frame with adjustable length designed for mounting electric wire hoists. The telescopic design allows the working reach to be adjusted according to the needs of the workstation, making it a practical solution for workshops, warehouses, garages, and various lifting applications.

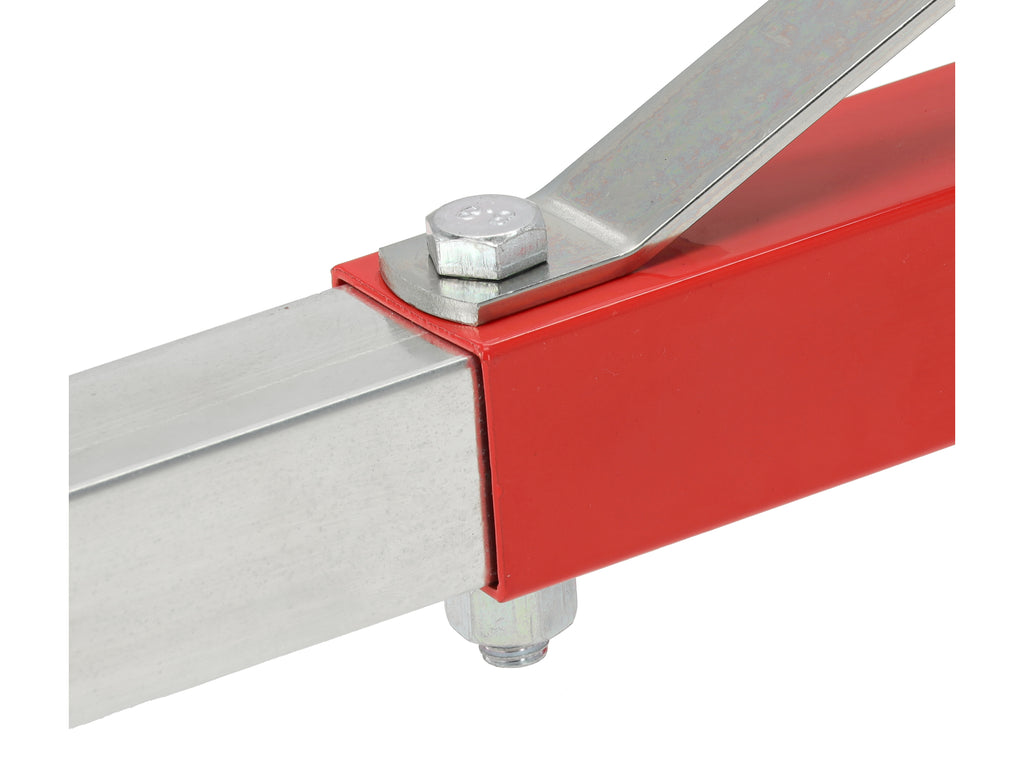

The construction is made of two steel profiles: an outer profile 45 × 45 × 1.8 mm and an inner profile 40 × 40 × 2.5 mm, ensuring high rigidity and durability. The arm provides a 180° rotation range, allowing convenient positioning and movement of lifted loads.
Due to the adjustable frame length, the maximum load capacity varies:
Up to 600 kg at an arm length of 750 mm
Up to 300 kg at the maximum arm length of 1100 mm
The arm is designed for mounting on a pipe with a diameter of Ø 48 mm. The product complies with GS and RoHS standards, confirming its safety and compliance with applicable regulations.
Technical specifications:
- Maximum load capacity: 300 kg (at arm length 1100 mm)
- Maximum load capacity: 600 kg (at arm length 750 mm)
- Adjustable arm length: 750 – 1100 mm
- Rotation range: 180°
- Outer profile size: 45 × 45 × 1.8 mm
- Outer profile length: 771 mm
- Inner profile size: 40 × 40 × 2.5 mm
- Inner profile length: 714.5 mm
- Mounting: for pipe Ø 48 mm
- Certifications: GS / RoHS
- Weight: 6.3 kg
A practical solution for users who require greater flexibility and adjustable working reach when operating electric wire hoists.
